LED Tube

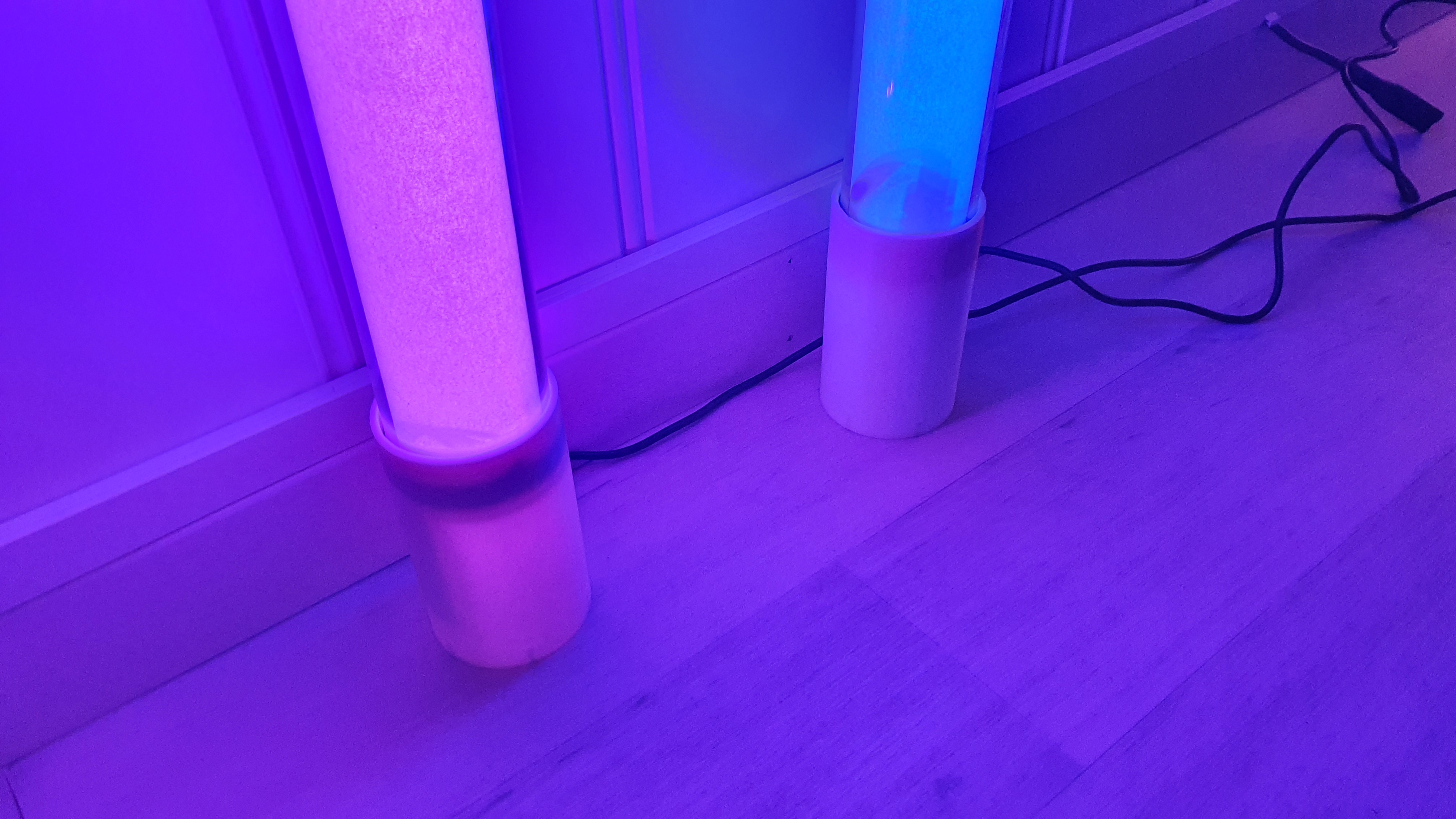

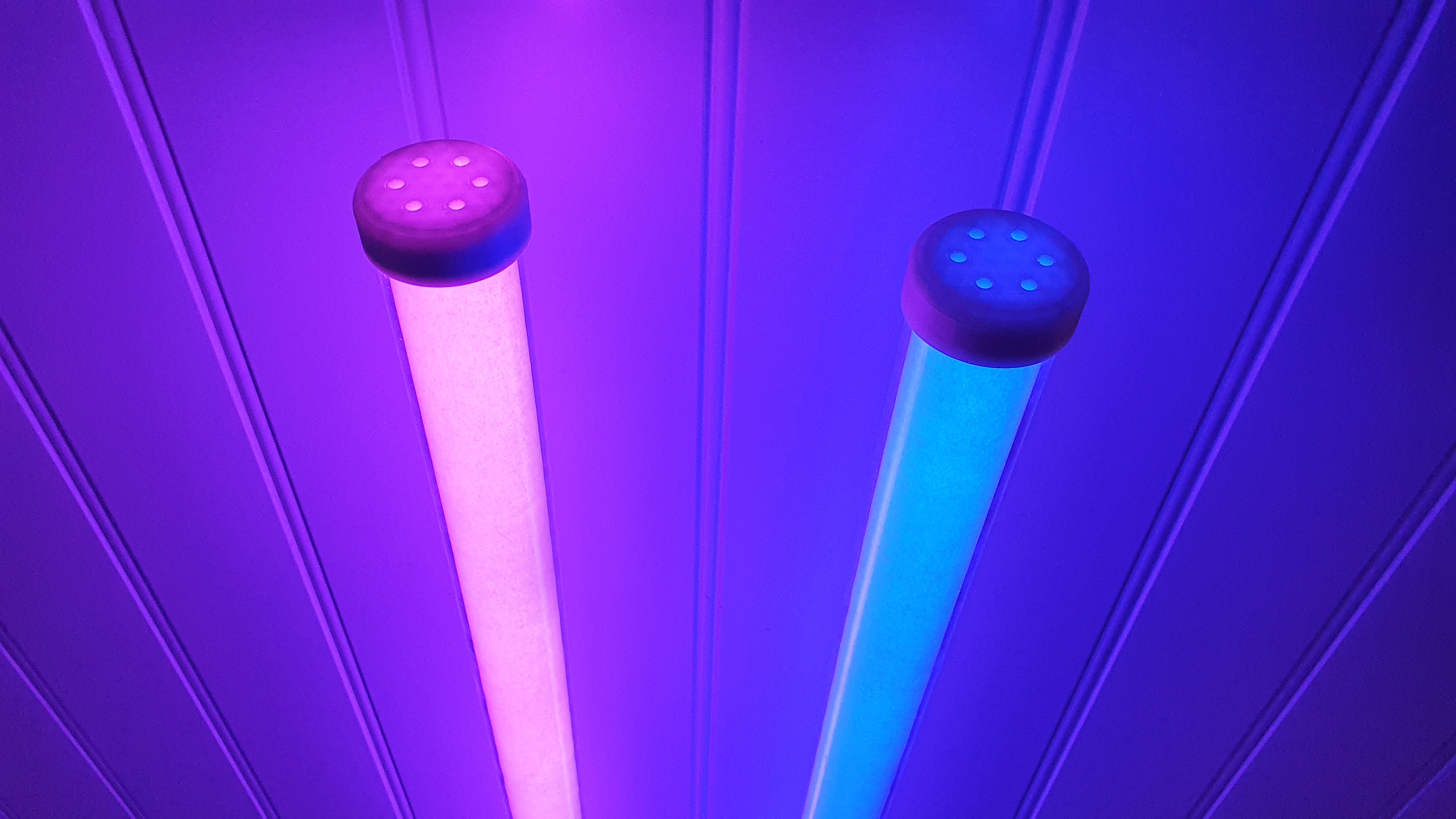

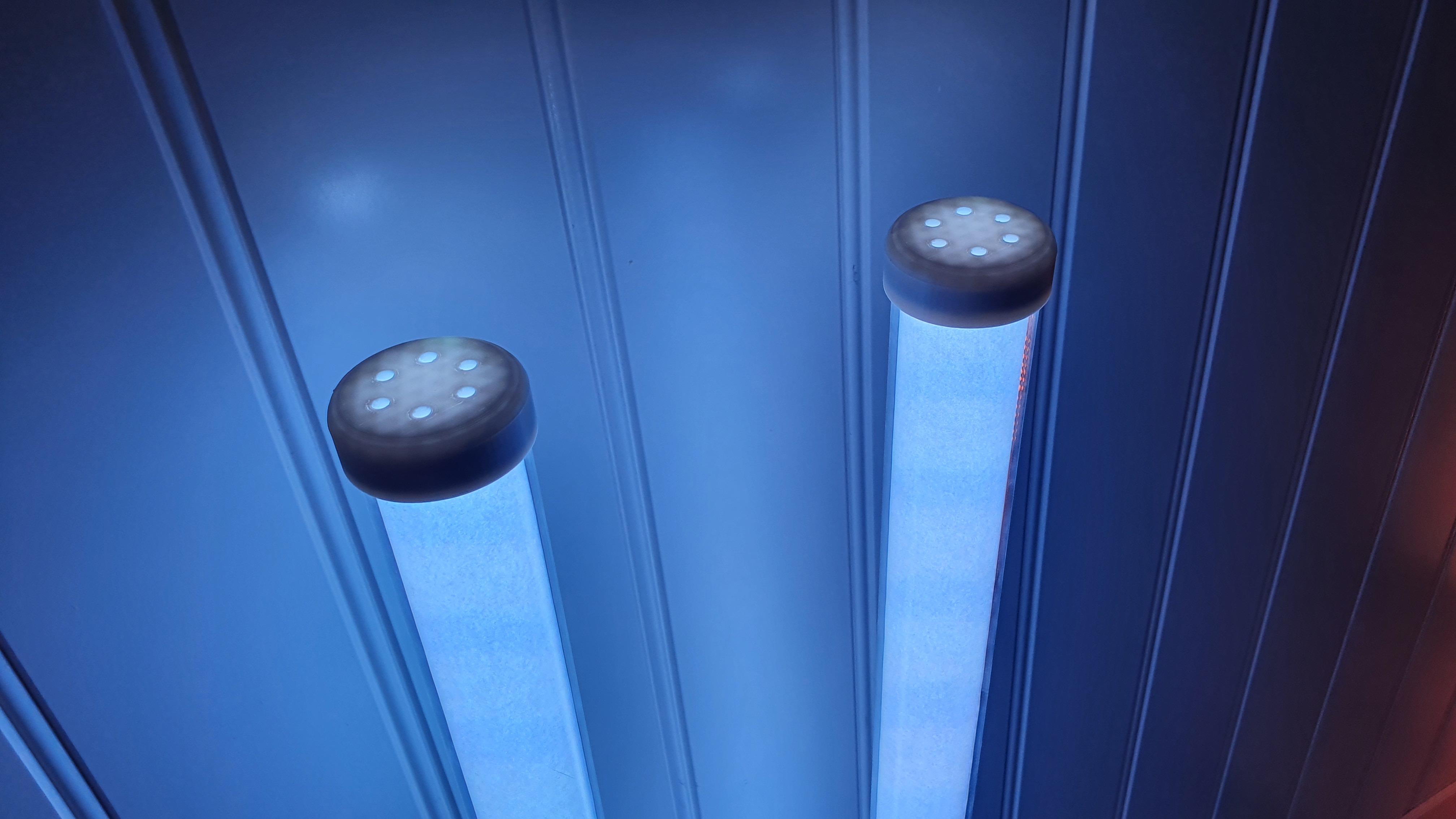

Result:

Demo video:

Pictures:

Process

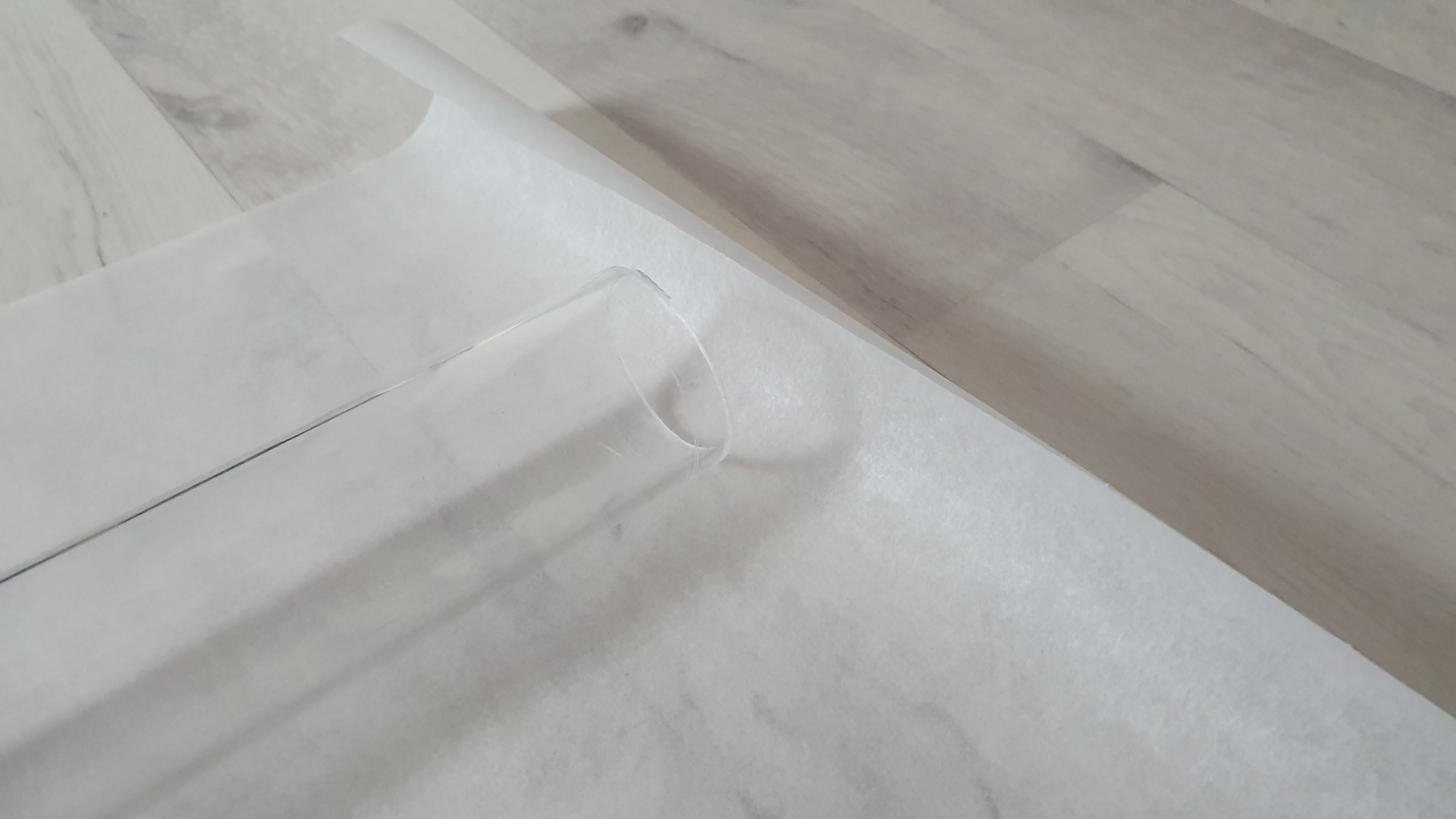

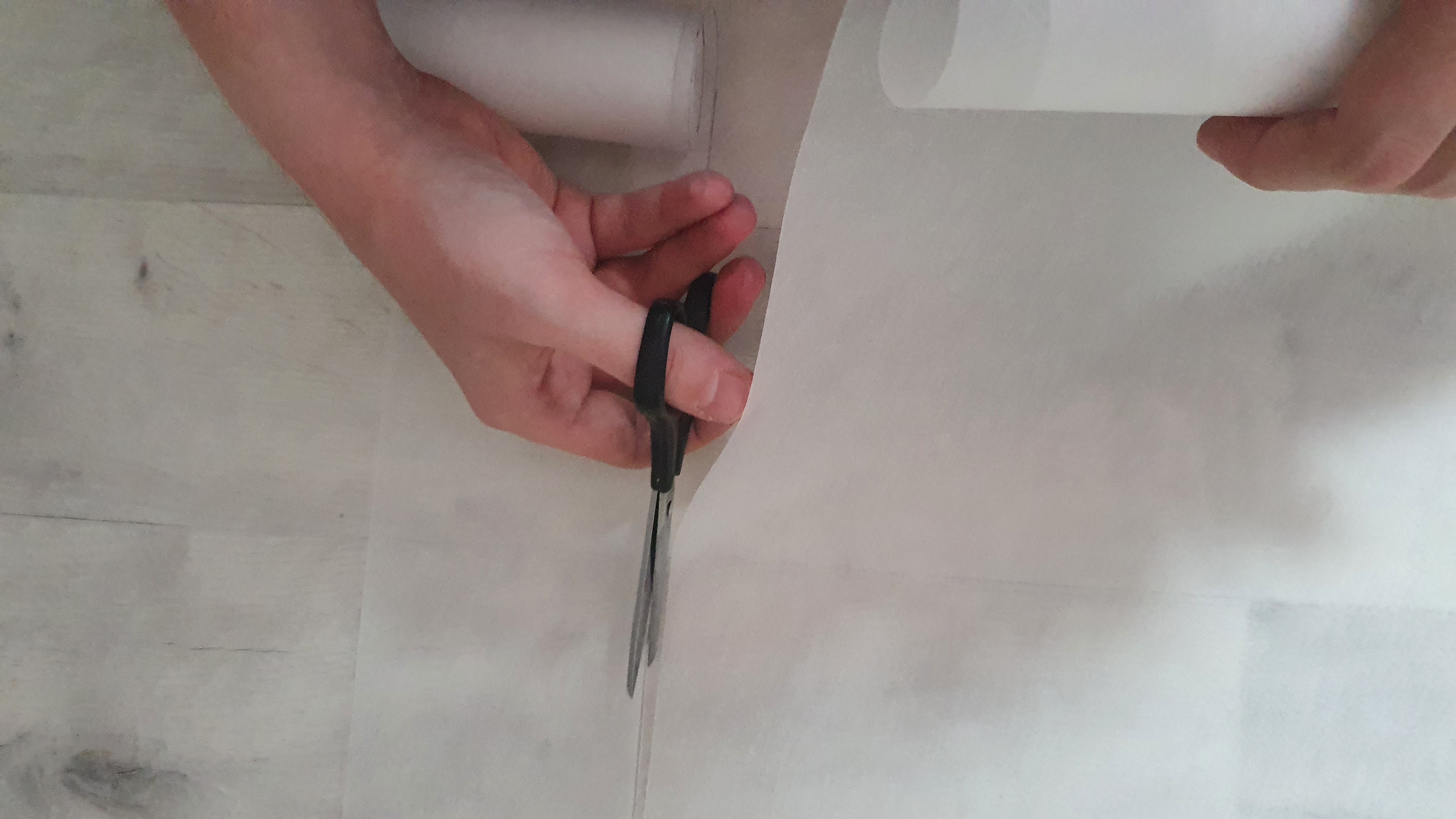

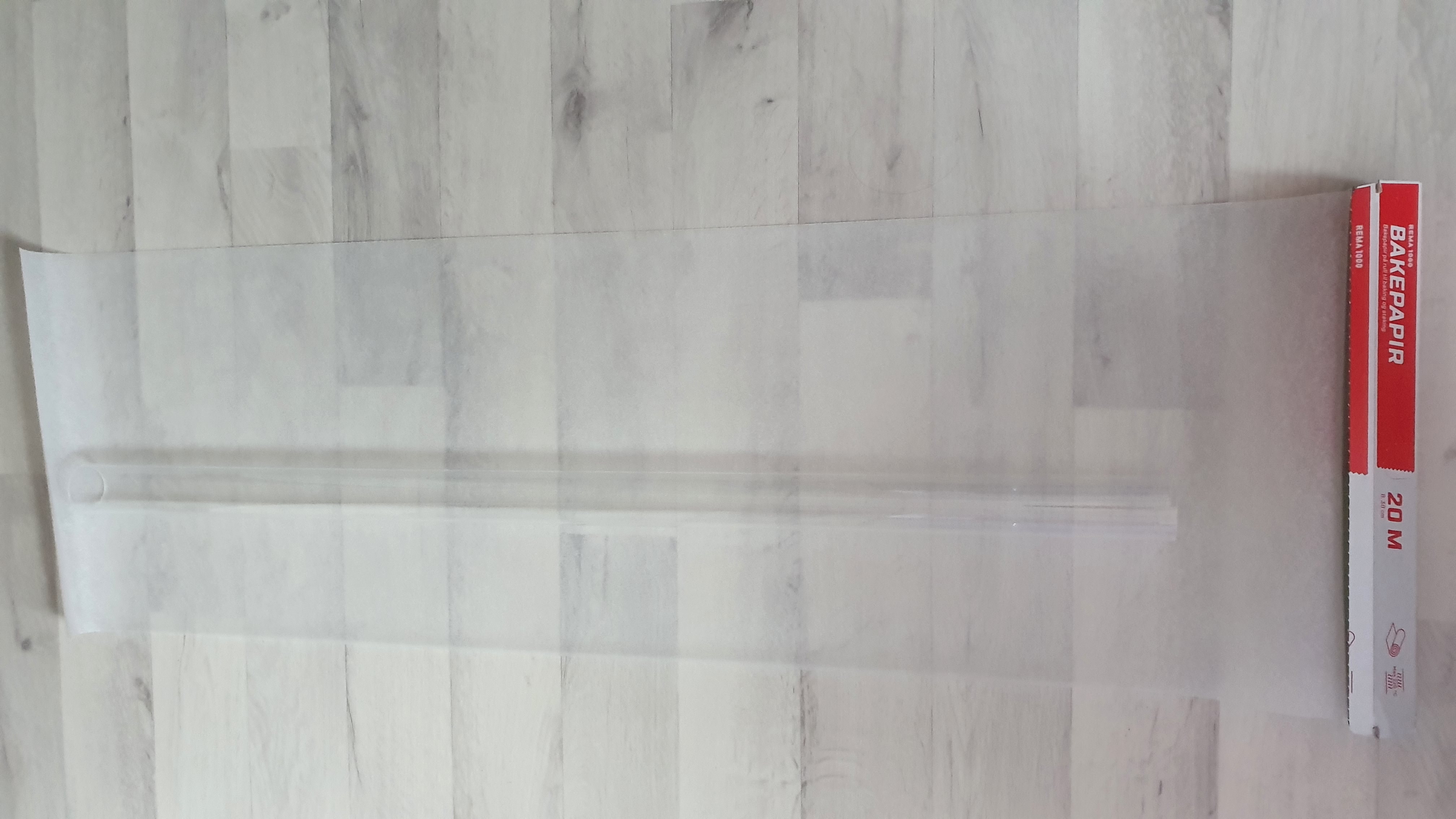

Step 1: cut paper

Take baking paper, cut it according to the tube's lenght and add 2-3cm from both sides.

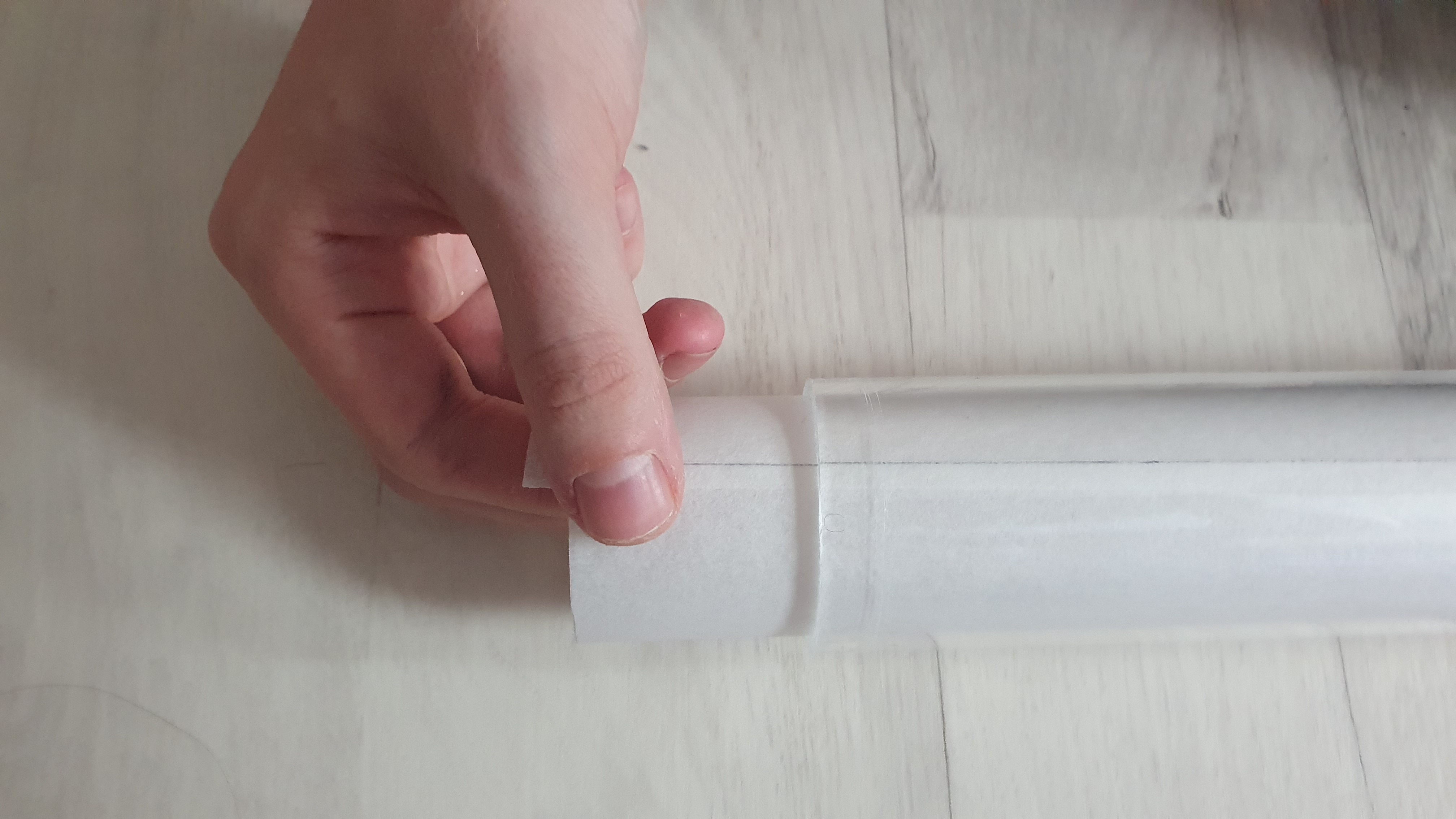

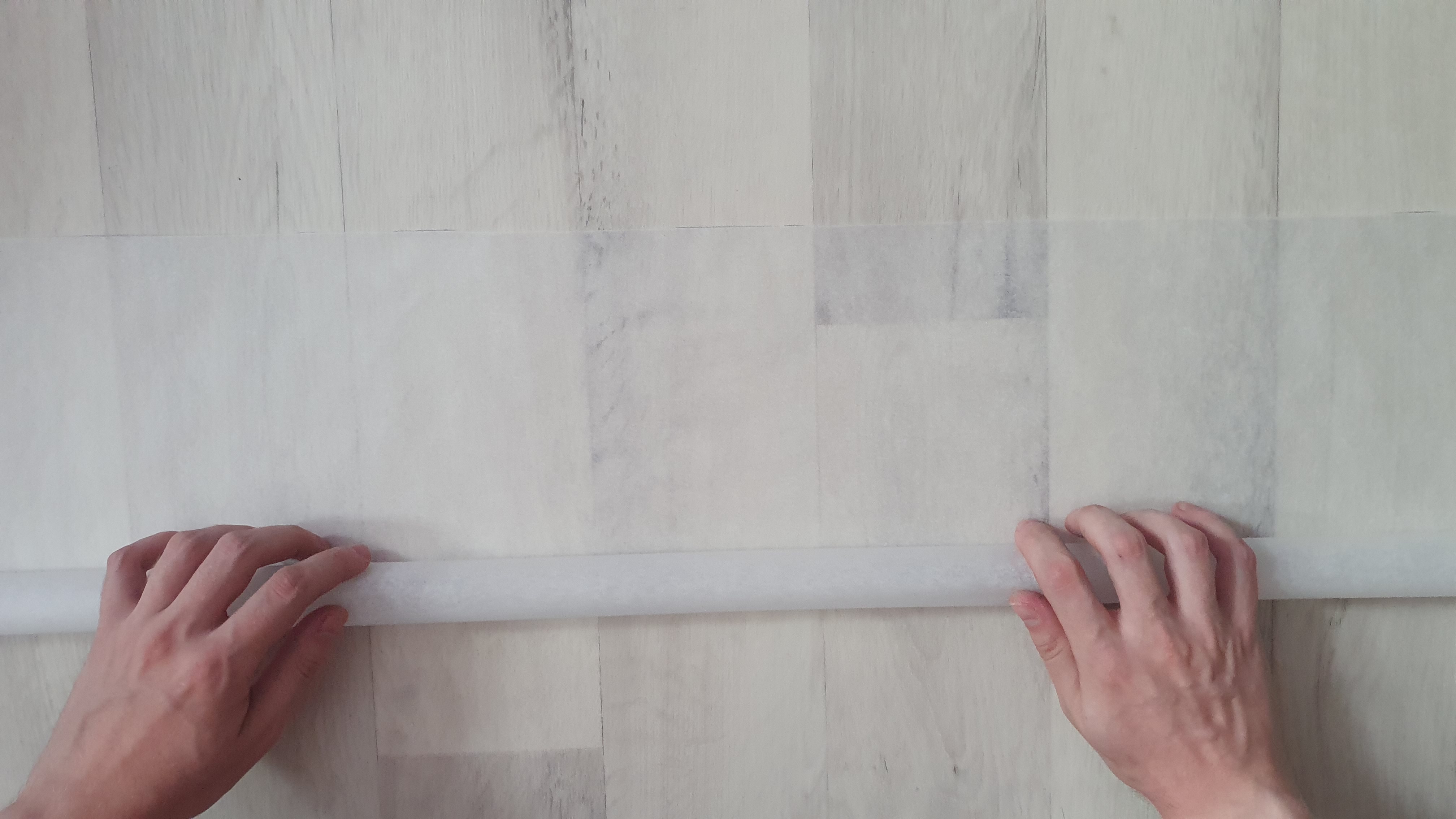

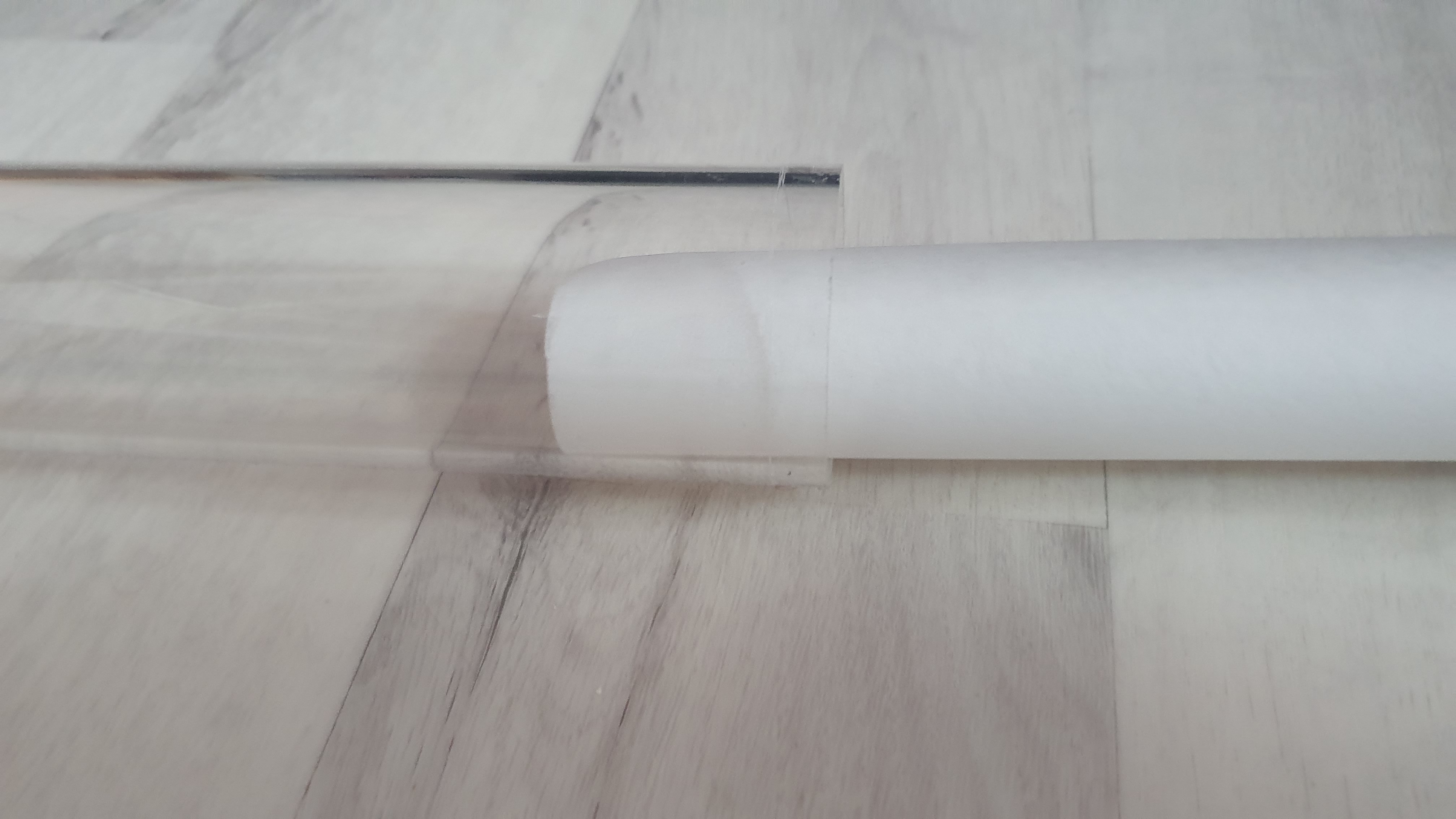

Step 2: put paper inside

Roll paper and put it inside the tube by leaving 2-3cm from each side outside of the tube.

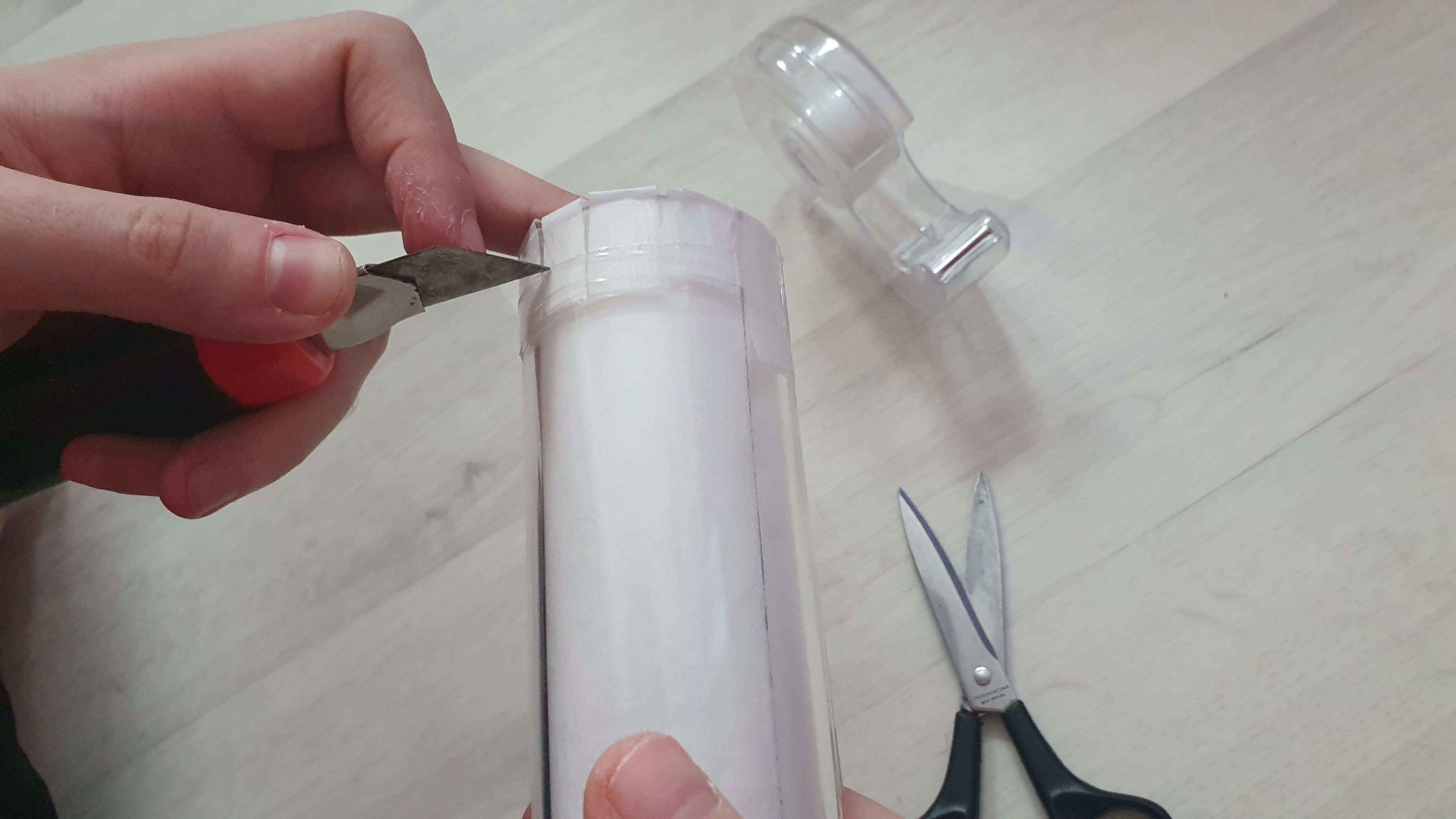

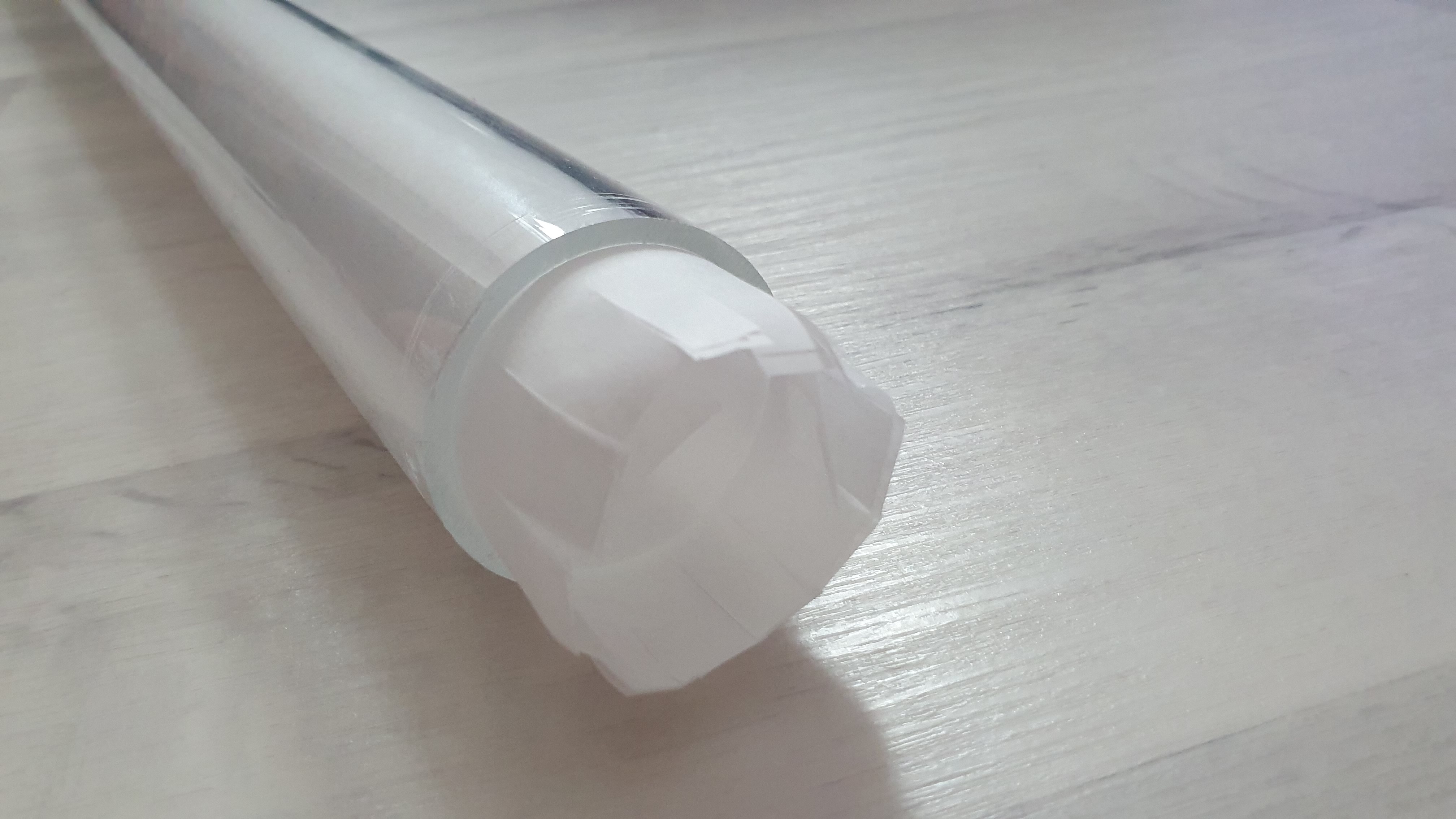

Step 3: cut ends vertically

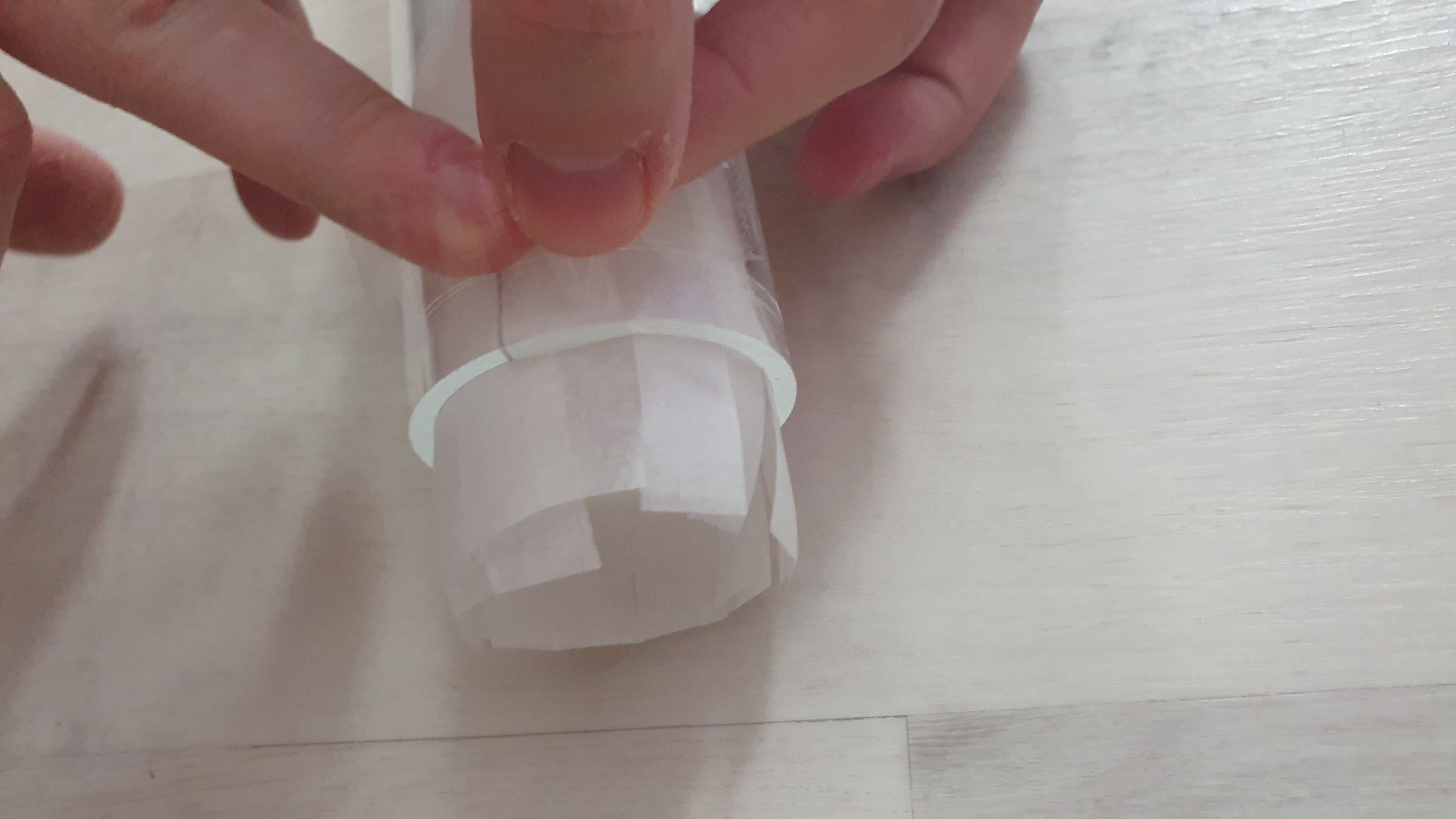

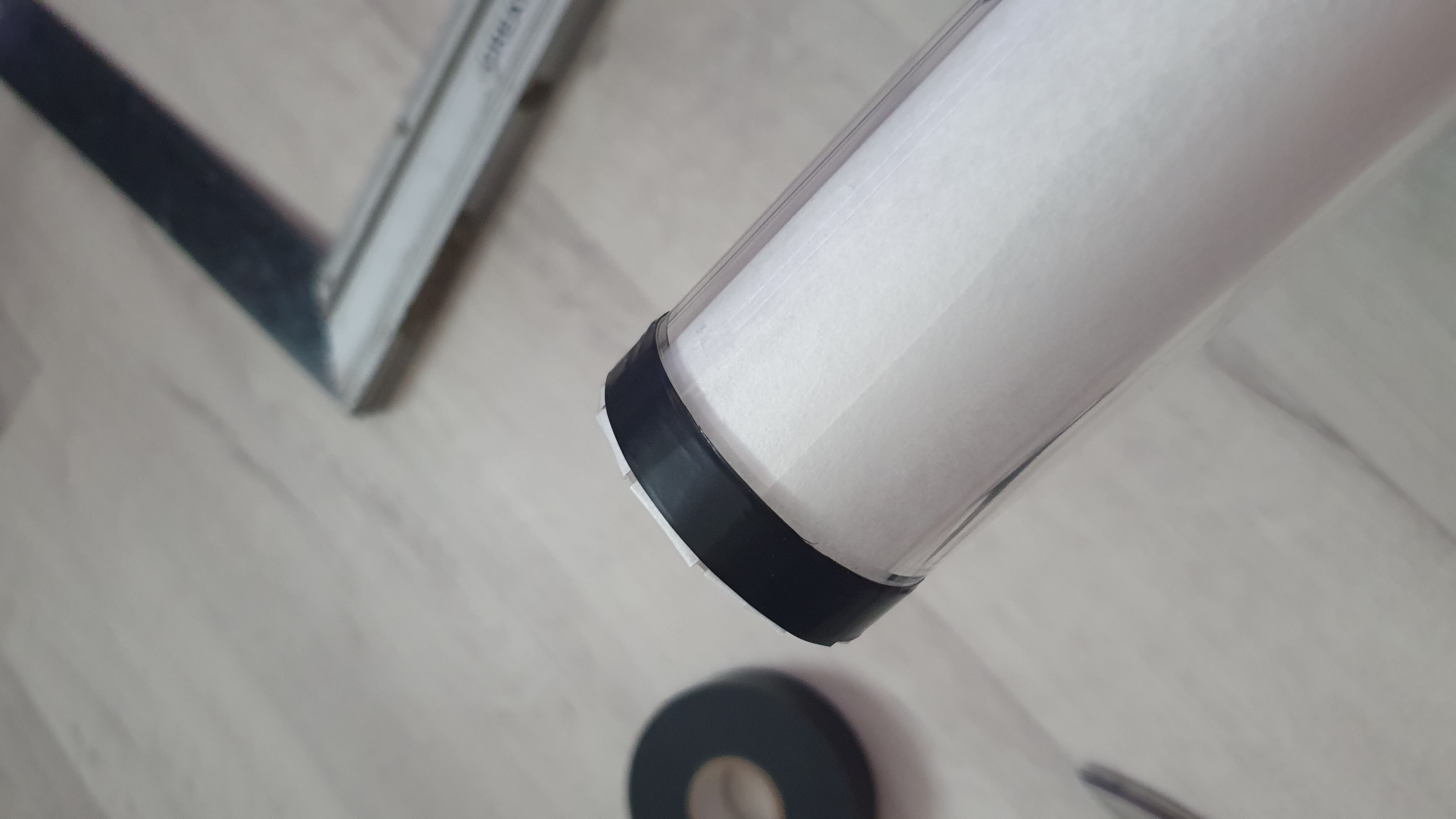

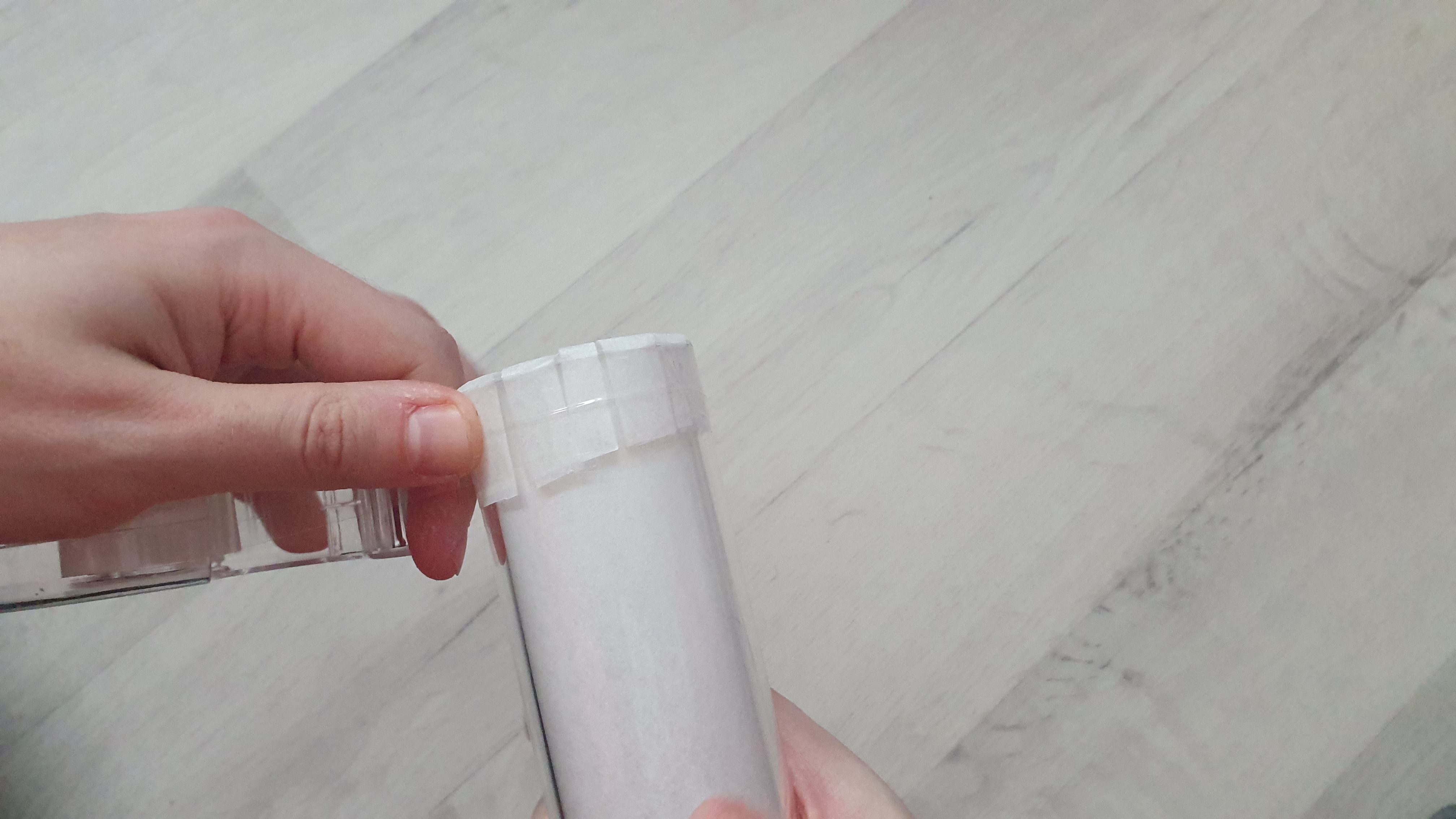

Step 4: tape

Tape each slice/cut to the tube one by one.

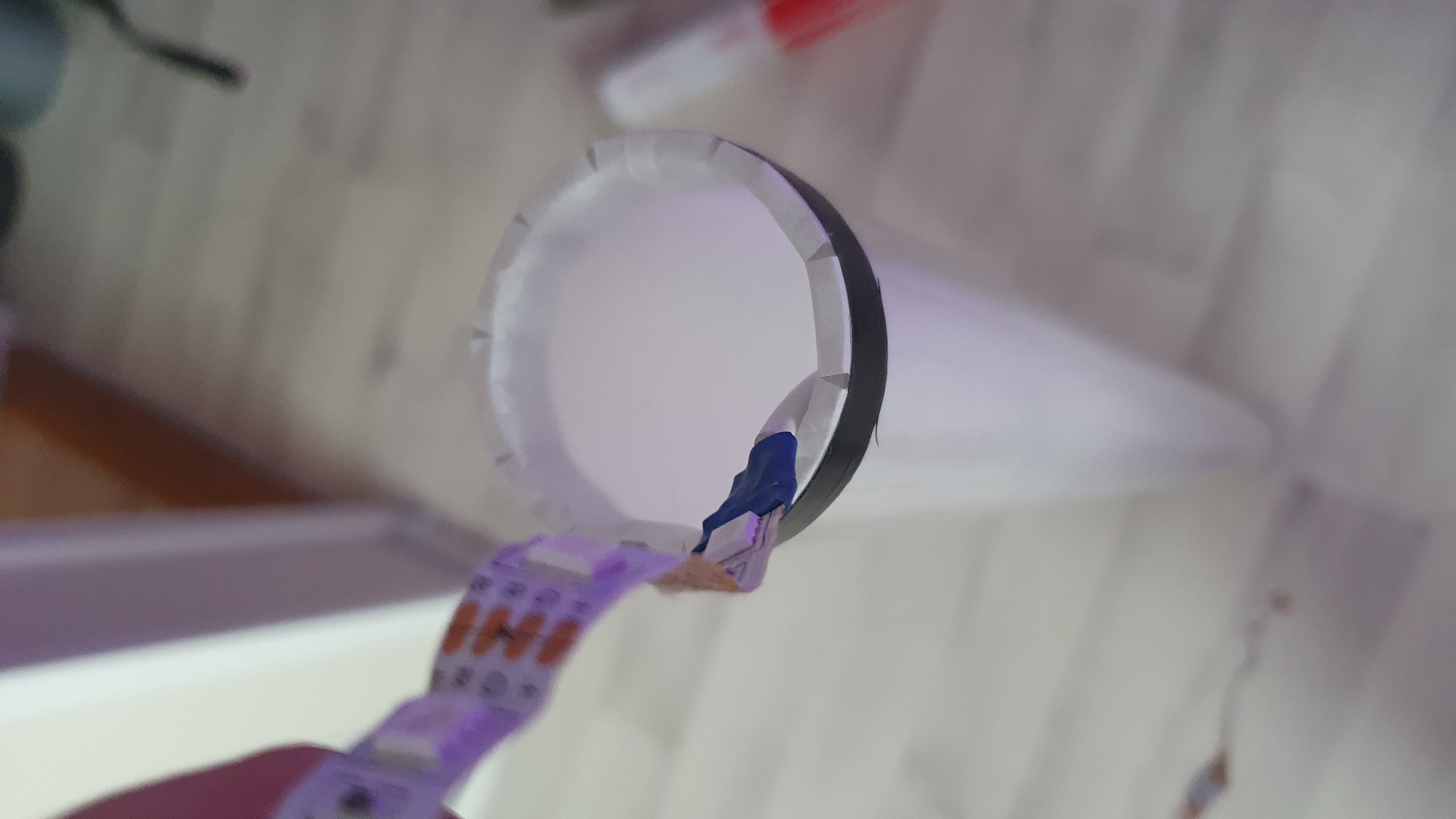

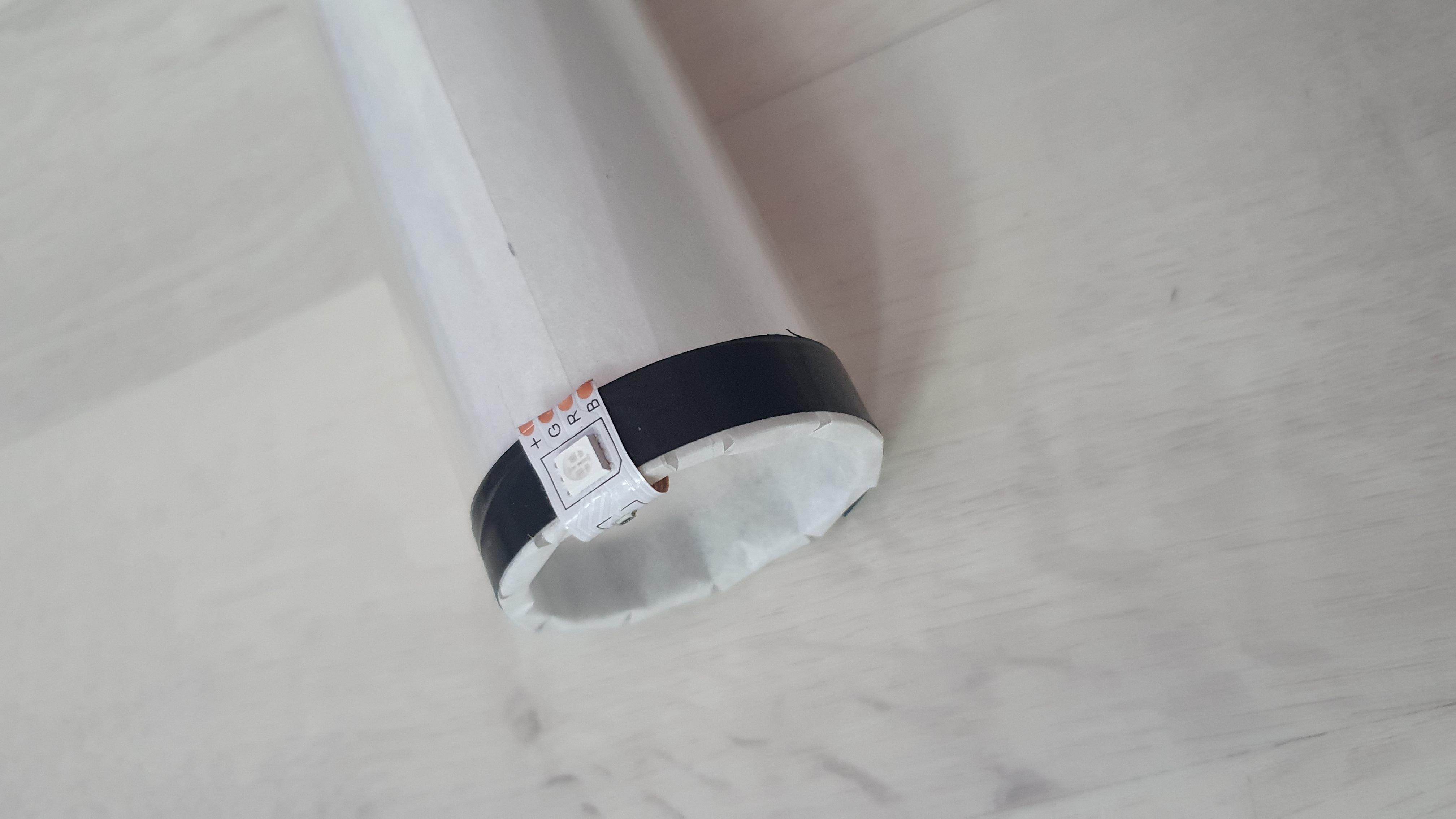

Step 5: put LED strip inside

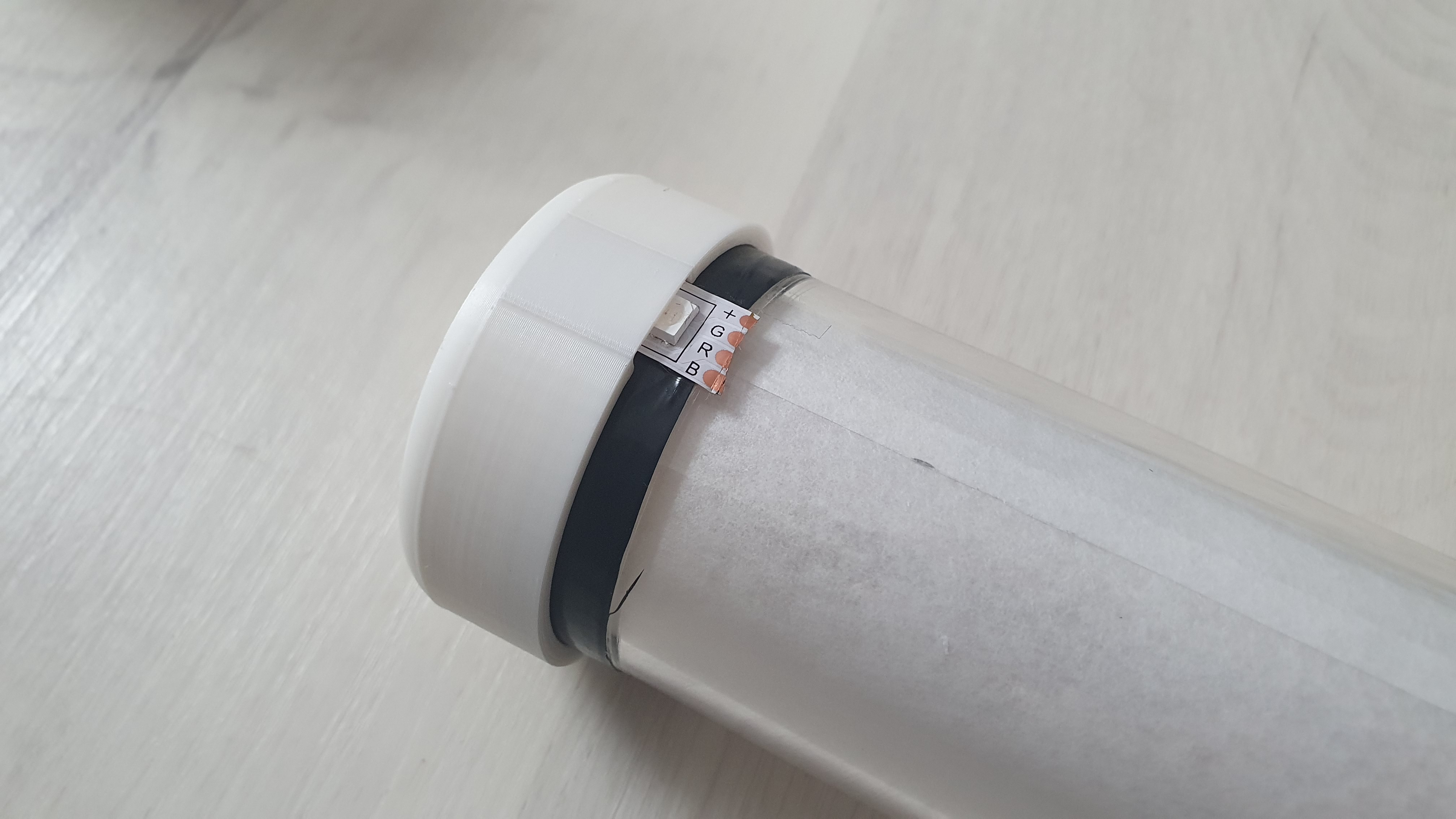

Put all leds inside except one. Bend it to the outer side of the tube. Close the cap.

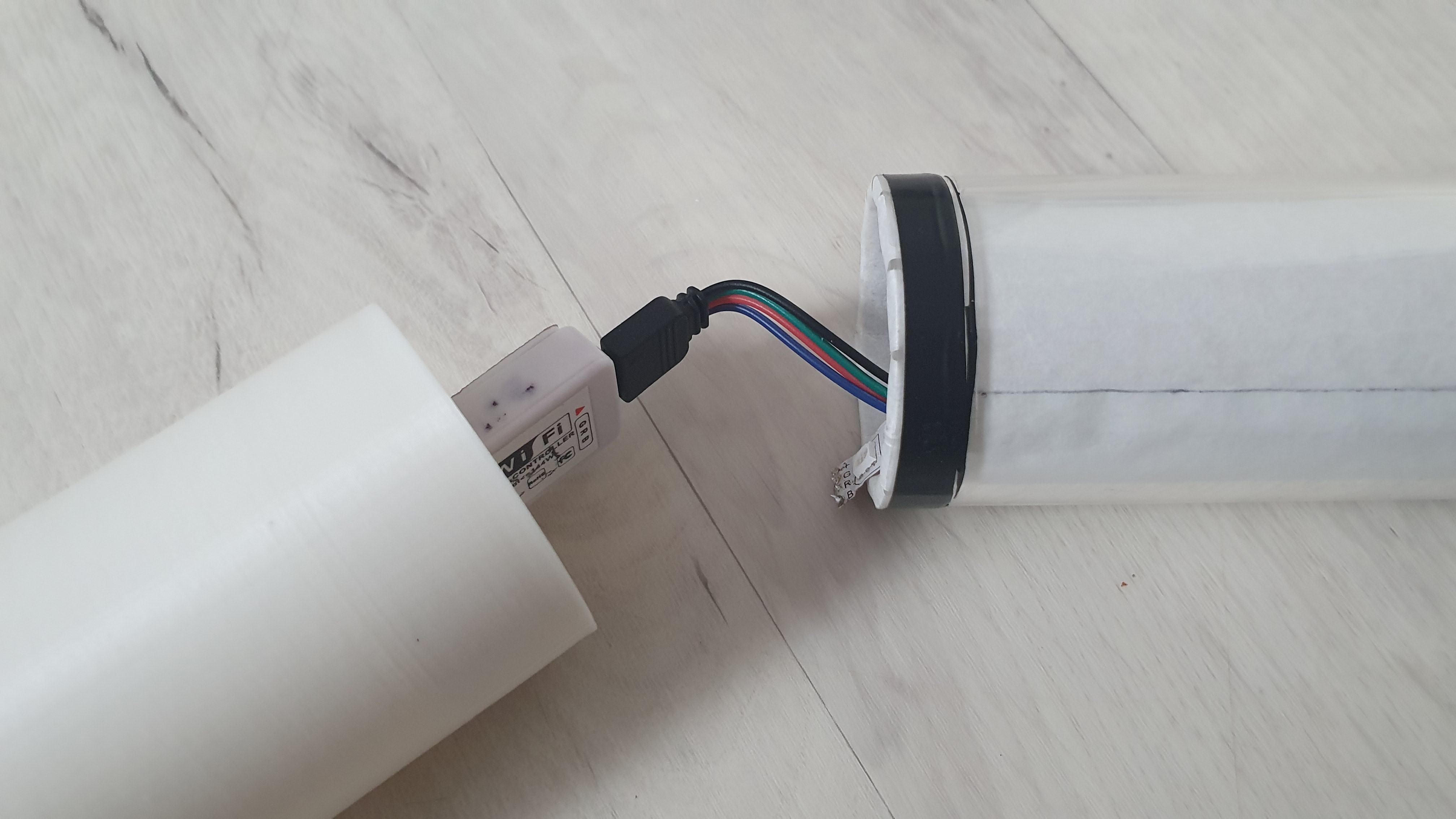

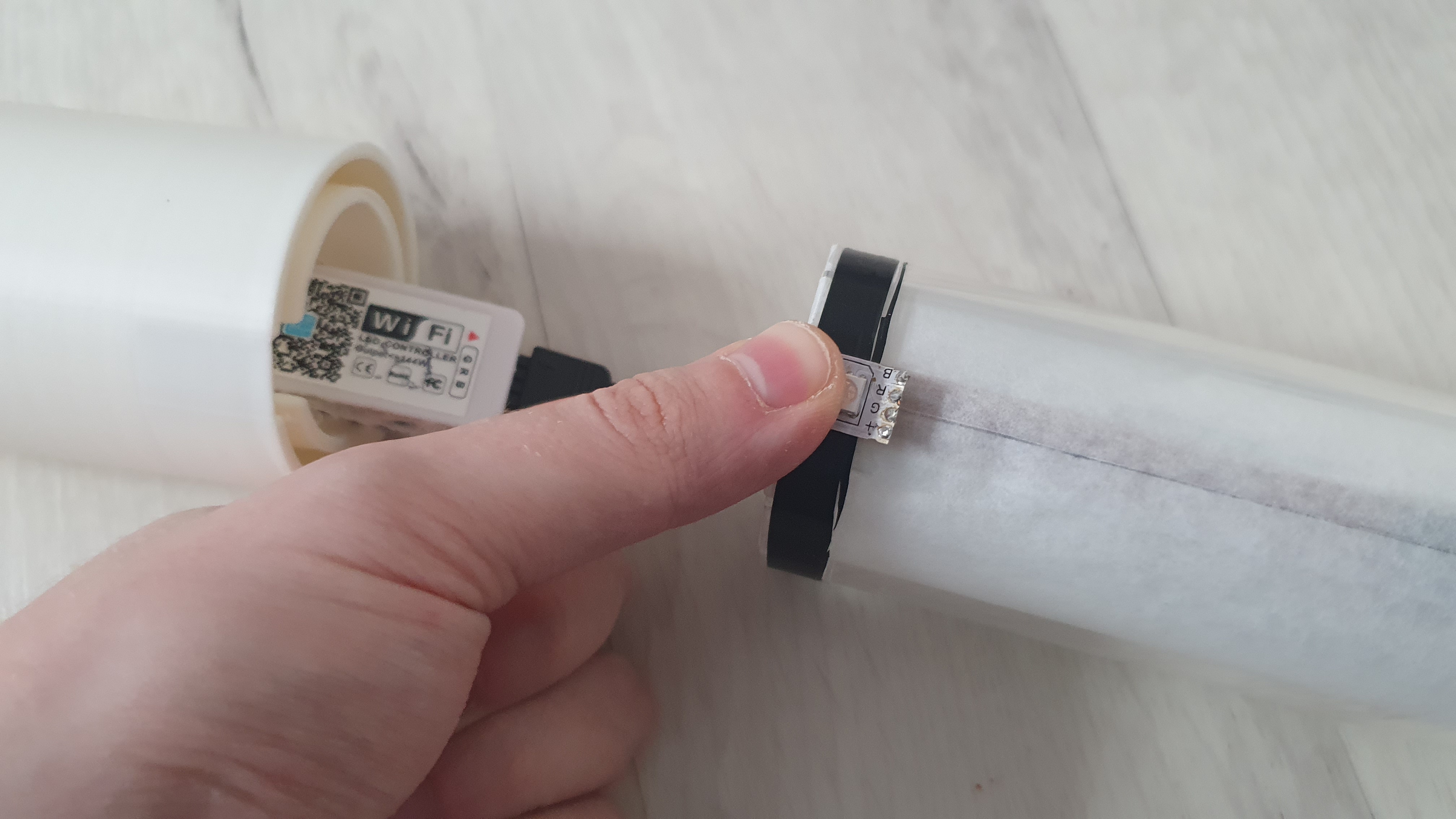

Step 6: connect to controller

You can use any controller for leds, I decided to use the one from Magic Home, because it is compatible with smart home system that I'm using.

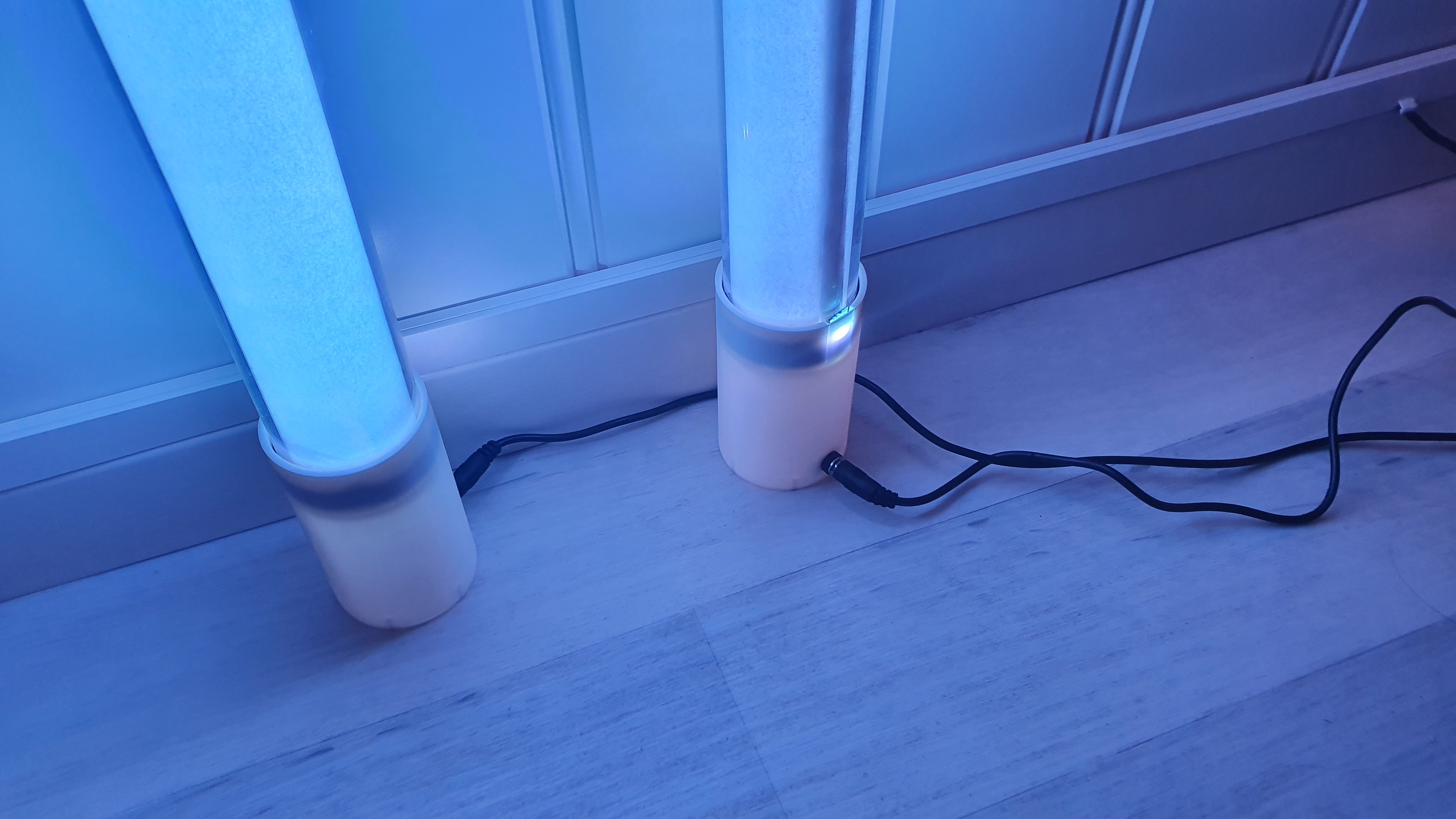

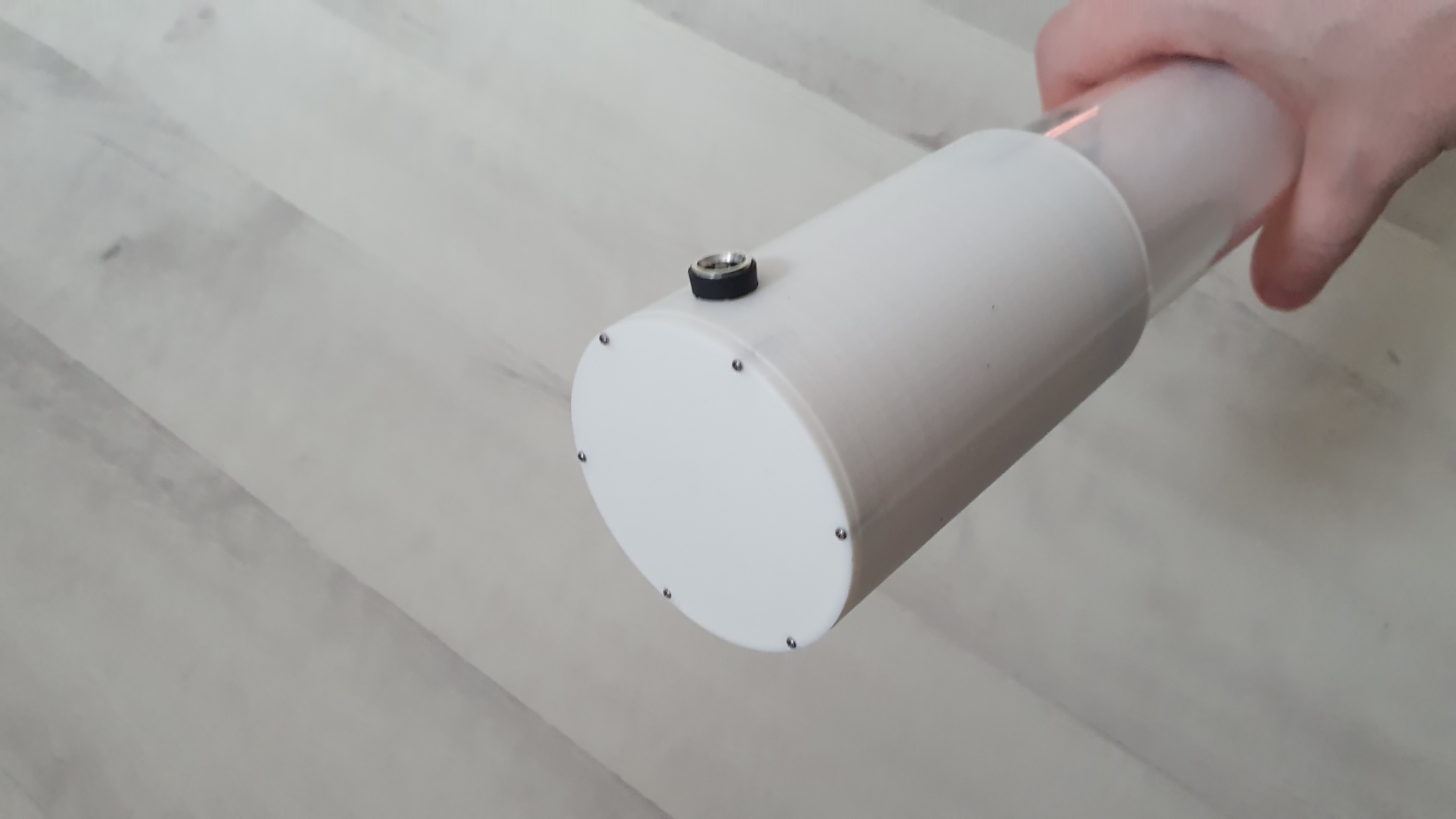

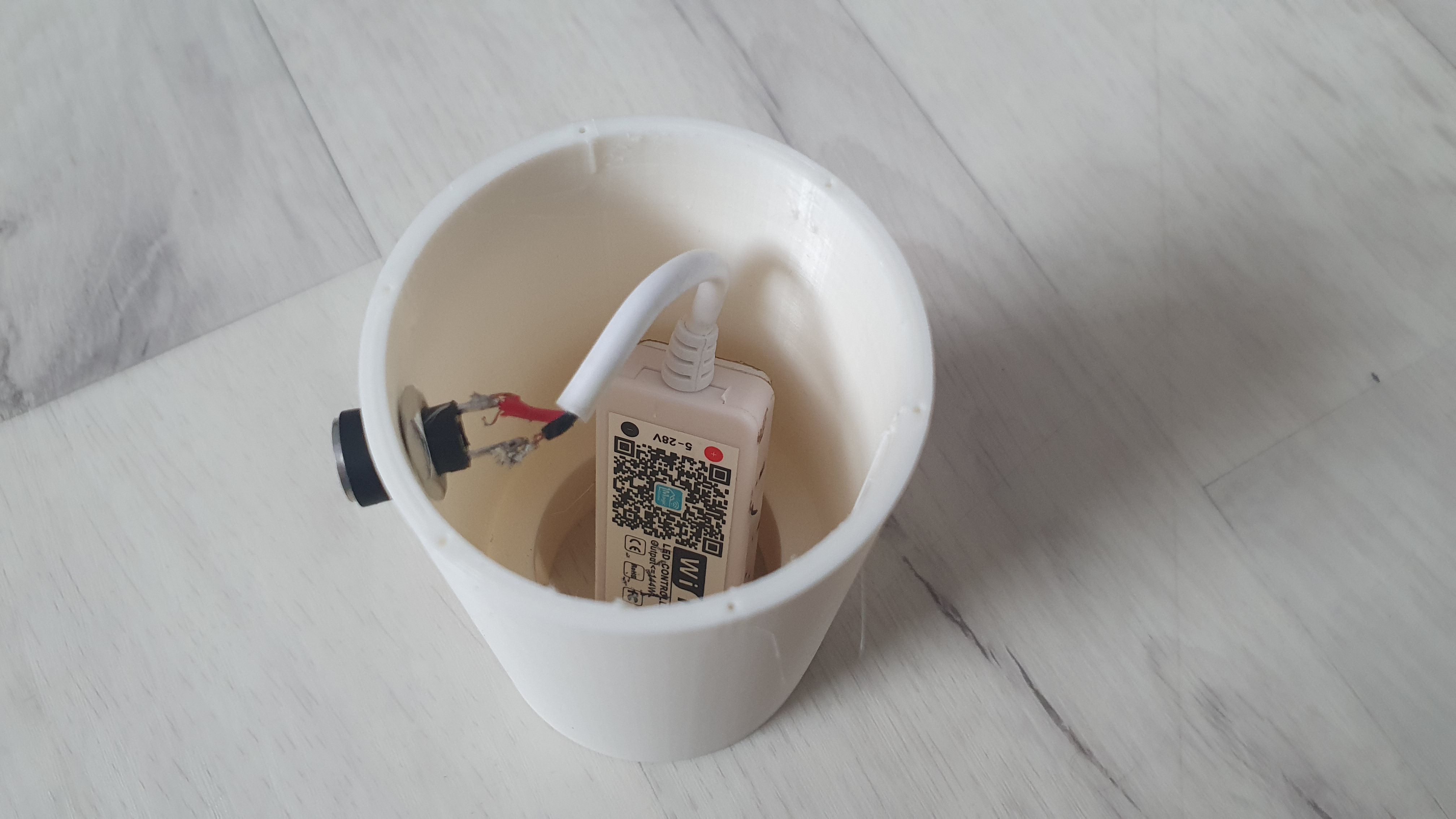

Connect another end of LEDs to controller and close the bottom part.

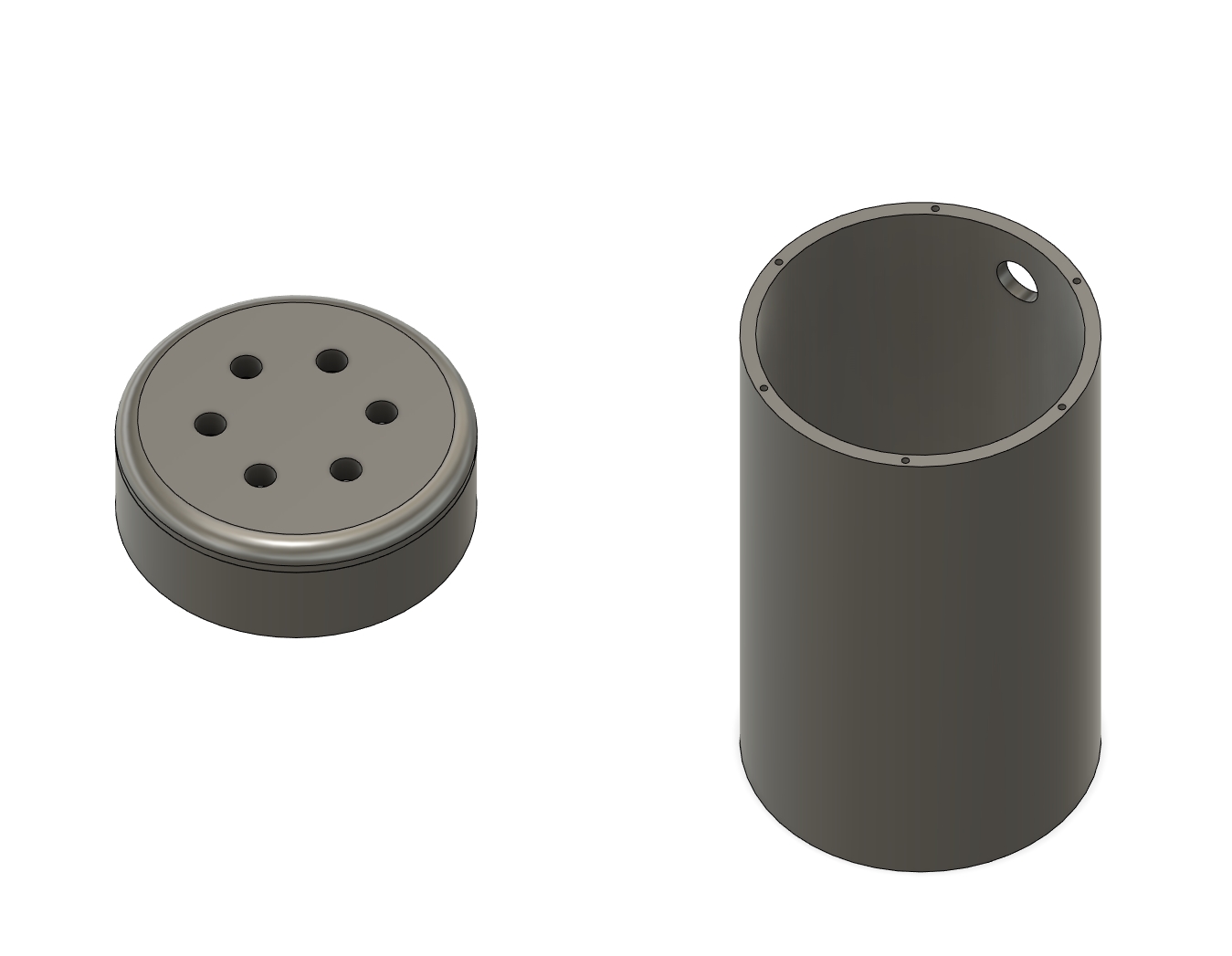

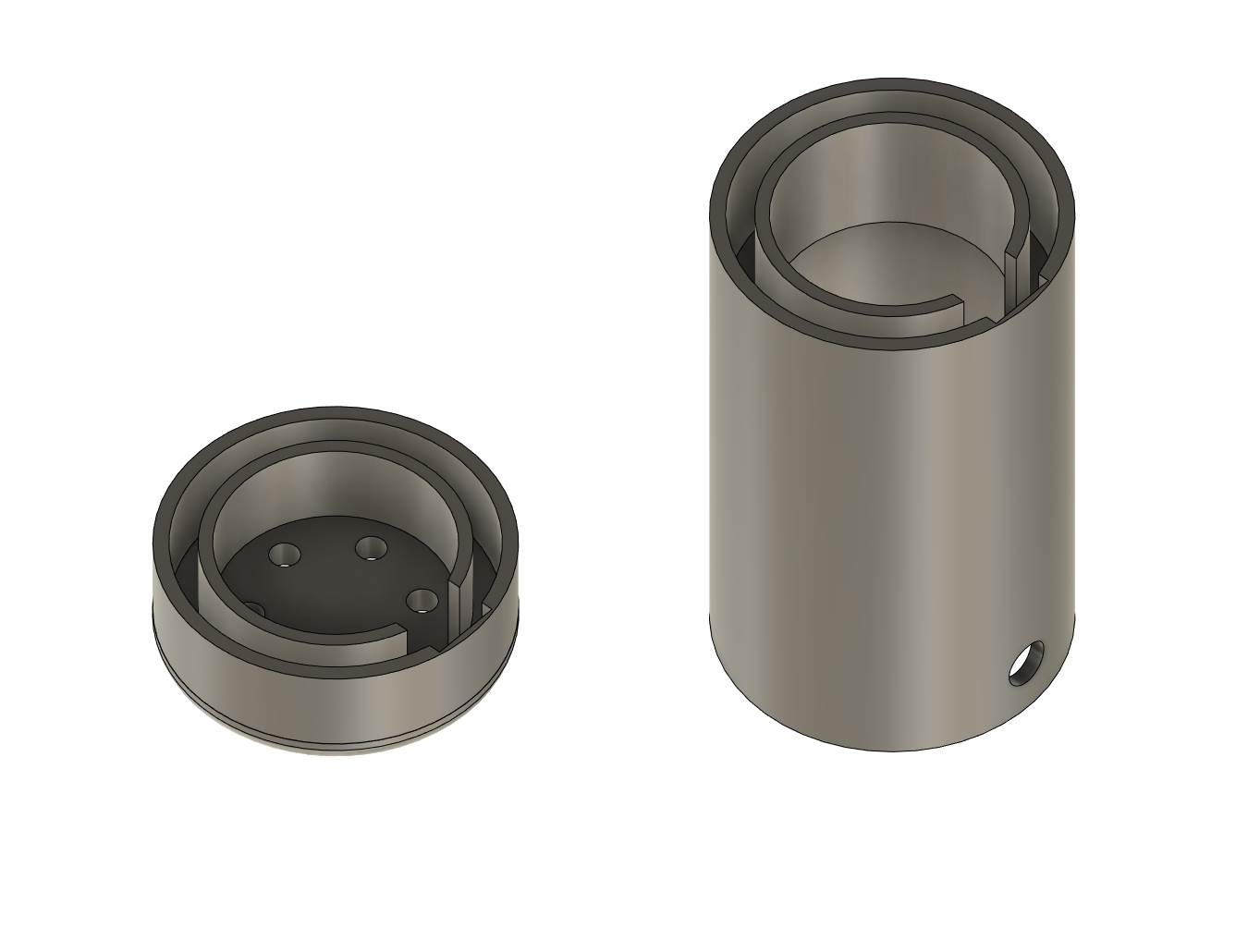

3d models:

Model 1

Model 2
